Case Study – Preventing Sparks from Entering the Dust Collector

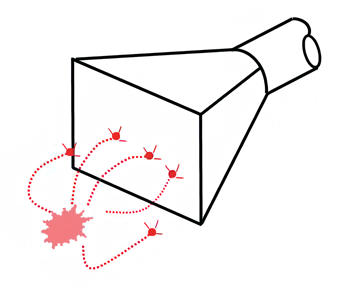

  • Sparks may enter through the hood, raising concerns about a dust collector fire.

  • Sparks are generated from the dust source and are directly sucked in.

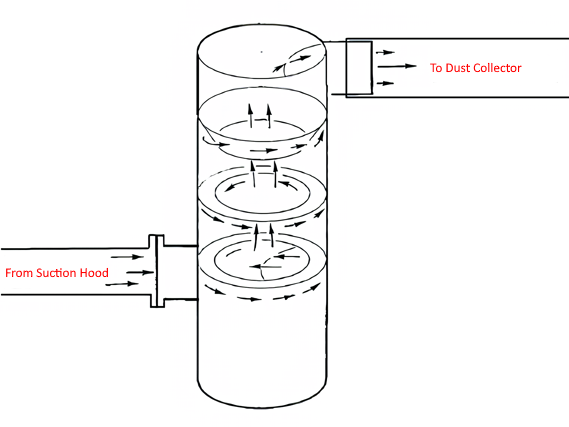

1. Installation of a Pre-processing Fire Extinguishing Box (DB).

2. A unique centrifugal method provides effective fire extinguishing (countermeasure).

3. Adding a centrifugal pre-dust box to the dust collection duct reduces the risk of sparks entering (although fire prevention is not 100% guaranteed).

4. In addition, installing an impact plate on the hood to prevent sparks from being directly sucked in is also effective.

◆ Solution point

    • Restricting spark entry reduces fire risk.

    • Since hood measures alone are difficult to resolve, installing a pre-dust box with fire extinguishing properties is recommended.

◆ Benefits

  • Since it can be retrofitted, it can also be used to deal with sparks generated by changes in processing methods, etc.

  • Restricting spark entry reduces fire risk.
