PiF-15N/30N/45N/60N – Intelligent Dust Collector –

The Amano PiF-N Series Pulse Jet dust collector features fully automated functions and dependable operation for a wide range of industrial applications. From cutting and drilling to mixing and material loading, this high-performance industrial dust extractor is engineered for continuous use. The PiF Series is perfectly suited for the automotive industry, chemical manufacturing, electronics production, and various other demanding industrial environments.

Molded filter

Pulse jet

General dry dust

Max. airflow

Premium efficiency motor

Features:

  • Advanced Automation: A fully automated pulse jet dust collector designed for maintenance-free, 24/7 operation.
  • Versatile Processing: Ideal dust extraction solution for cutting, drilling, mixing, and bulk loading.
  • Industry Versatility: Engineered specifically for the automotive, chemical, and electronics manufacturing sectors.
  • Dependable Suction: Ensures a clean workspace by capturing fine particles across diverse industrial applications.
  • Comes with an Inverter that automatically adjusts the speed and longer filter life.
  • With a Differential pressure sensor.
  • Can be integrated with the machine on/off.

Molded cartridge filter

Material: Polyester
Surface treatment: –
Corresponding models: PiF
Application: General dried particles

Features

  • Collecting efficiency: Good, For dust having a particle diameter of about 10μm.
  • Heat resistant temperature (F) : Normal temperature 40˚C (104˚)
  • Dust removal: Pulse jet

Nanofiber filter option without extra cost

Nanofiber filter option without extra cost

  • The nanofiber filter area has a about 2.5 times lager than standard filter.
  • Dust is collected with a nanofiber layer and can be easily removed with plus jet.
  • By large filter area and reducing the filter filtration speed, that make life of filter loneger than ever.
  • Nanofiber has self-extinguishing function, it prevents fire from dust collector

Automatically controls the fan speed

Built-in inverter automatically operates with the set value of air volume. (Fixed motor rotation speed is also possible)

Automatic pulse jet

Automatically start puls jet for filter cleaning

Remote control

Remote control function allows PiF star to operate automatically.

Automatic data logging

QR code will be displayed and get error and operation history. it can be retrieved as CSV data.

Icon notifies you of filter clogging

The filter wear level (filter differential pressure) is displayed on the LCD screen as an icon or numerical value, allowing anyone to intuitively check when it's time to replace the filter.

Inverter saves power consumption up to 65%

Inverter saves power consumption up to 65%
Use Inverter for airflow control, you can save power consumption up to 65%

Downflow, extending the life of the filter

Downflow in the PiF reduces dust re-adhesion on the filter surface due to dust being blown up inside the bucket, controlling the increase in filter pressure loss and extending the life of the filter.

Energy-saving, space-saving design

A motor that complies with the premium efficiency standard IE3 is included as standard.

The PiF-30N/45N/60N have a 20% reduction in main body volume, resulting in a 20% smaller installation footprint compared to our previous models.

Compared to our previous models, the PiF-75/120-150 only require filter removal from one side, reducing installation restrictions.

Larger filter Area

PiF filter and

Filter area is 1.3 times larger than previous model

A wide variety of options available

You can choose from bucket specifications, hopper specifications, etc., depending on your application.

Various Options and Accessories

Internal Structure

PiF Inside

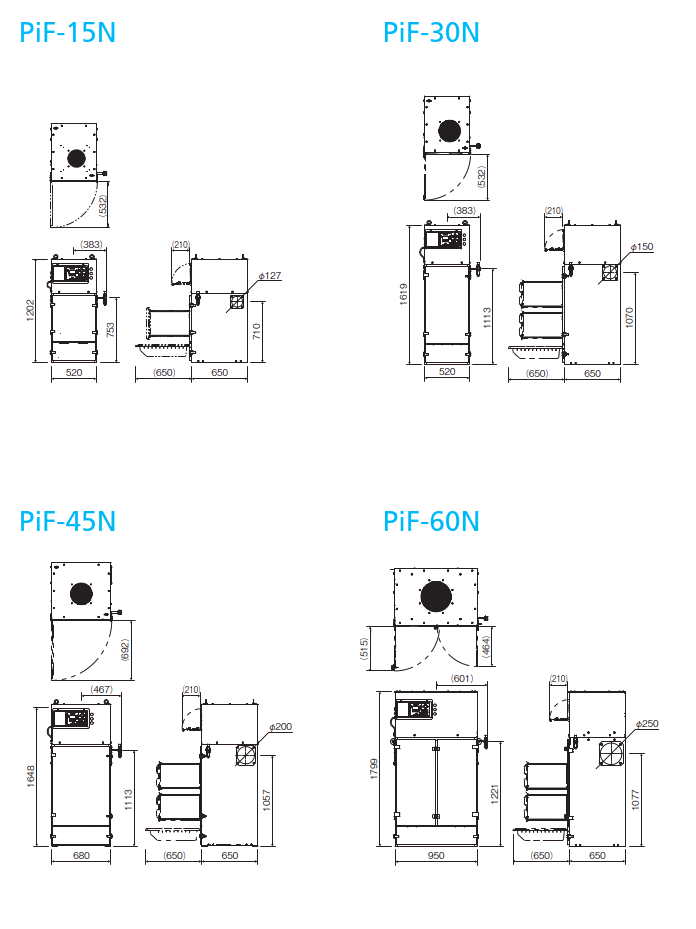

EXTERNAL DIMENSION

APPLICATION

Powder loading work

Powder loading work

Metal machining work

Metal machining work

Bag filing work

Bag filing work

Electronic comp mfg work

Electronic comp mfg work

Pneumatic Conveying loading

Pneumatic Conveying loading

Auto Machine Tool

Auto Machine Tool

SPECIFICATION

ParticularUnitPiF-15NPiF-30NPiF-45NPiF-60N
Power Supply220V-3P 60Hz220V-3P 60Hz220V-3P 60Hz220V-3P 60Hz
OutputkW/HP0.6/0.81.35/1.82.0/2.63.1/4.1
InverterStandard StandardStandardStandard
Max Air Flowm³/min18304560
Max Static PressurekPa2.652.652.653.00
Filter Aream²6.012.018.024.0
Suction Port Ømm127150200250
Dimensions
(WxDxH)		mm520×650×1202520×650×1619680×650×1648950×650×1799
Weightkg127163208315
