VF-5N Series – Compact General Purpose Dust Collector –

VF-5N-RV1

Amano VF-5N series dust collector is smallest dust collector comes with Powerful suction max 6.0 m3/min. Compact size and low-noise design allows you to install VF-5N under your work desk. New "triple shaker" mechanism provides excellent filter cleaning. VF-5NA provide auto filter shaking mechanism.

Molded filter

Manual Shaking
VF-5N

Auto shaking
VN-5NA

General dry dust

Max. airflow

Features:

  • Powerful suction from compact, quiet, energy-saving unit.
  • Compact design fits snugly under workbench.
  • New "triple shaker" mechanism provides excellent cleaning if filter element.
  • Employs bridge-type filter for wide filtering area.



Mold cartridge filter

Material: Polyester
Surface treatment: –
Corresponding models: VF-5N, VF-5NA
Application: General dried particles (particle diameter about 10μm)

Option: Finfill, Antistatic, and Finfill + antistatic

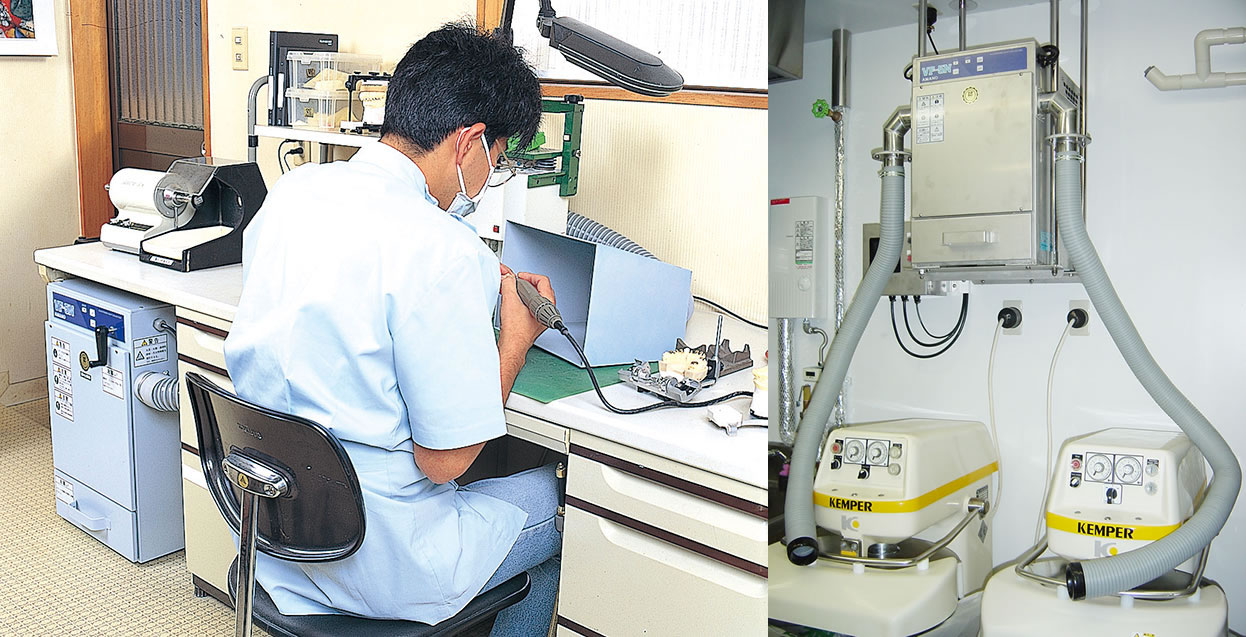

Compact and Powerful

This small unit fits nicely under your desk, and is light enough to be easily moved. (Optional casters are available.) It is easy to configure with any types of processing machine

Remote Control

This machine can be operated in conjunction with production equipment.

There are four types of setting patterns as follows:
A pattern: Only Built-in on / off switch
B pattern: Built-in on / off switch and Remoto switch
C pattern: Only remote control switch
D pattern: Operates while the remote-controlled operation switch is "ON", and stops when "ON" is released.

● The factory default is "B pattern".
● Keep the wiring distance to the remote control switch within 10m.
● Please contact our sales staff for details.

Various options

Filter Cleaning

VF-5N Dust Removal2

Easy filter replacement

Easy dust dispose

External view

VF-5N INSIDE 2

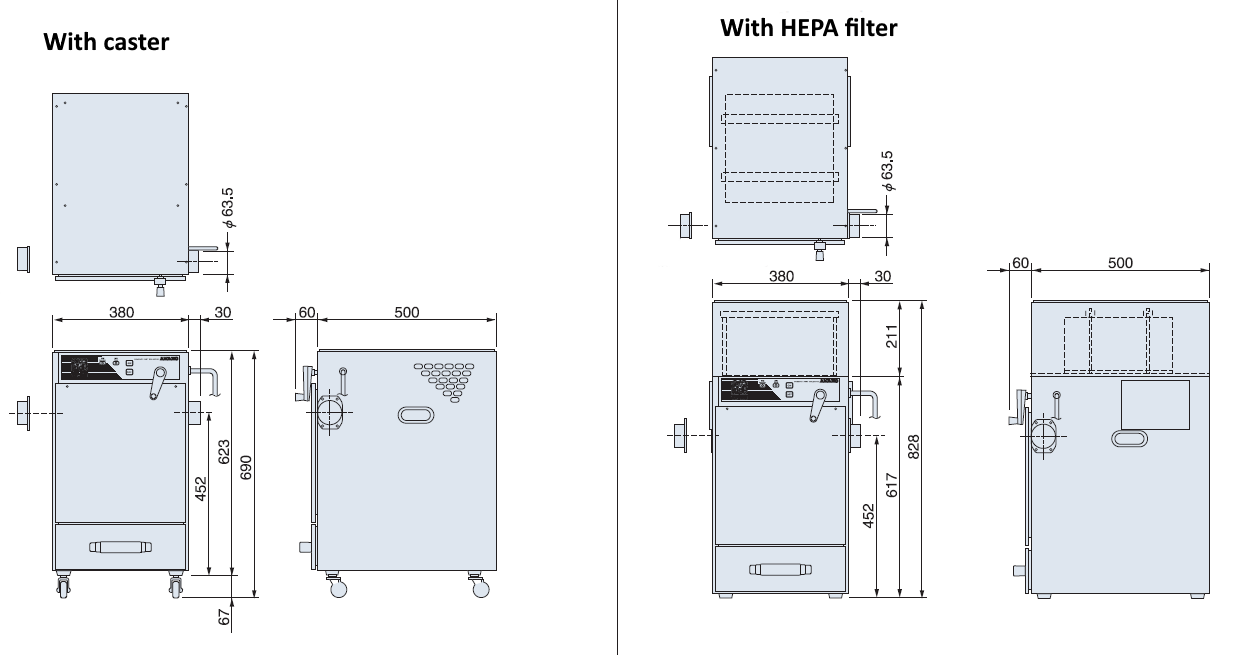

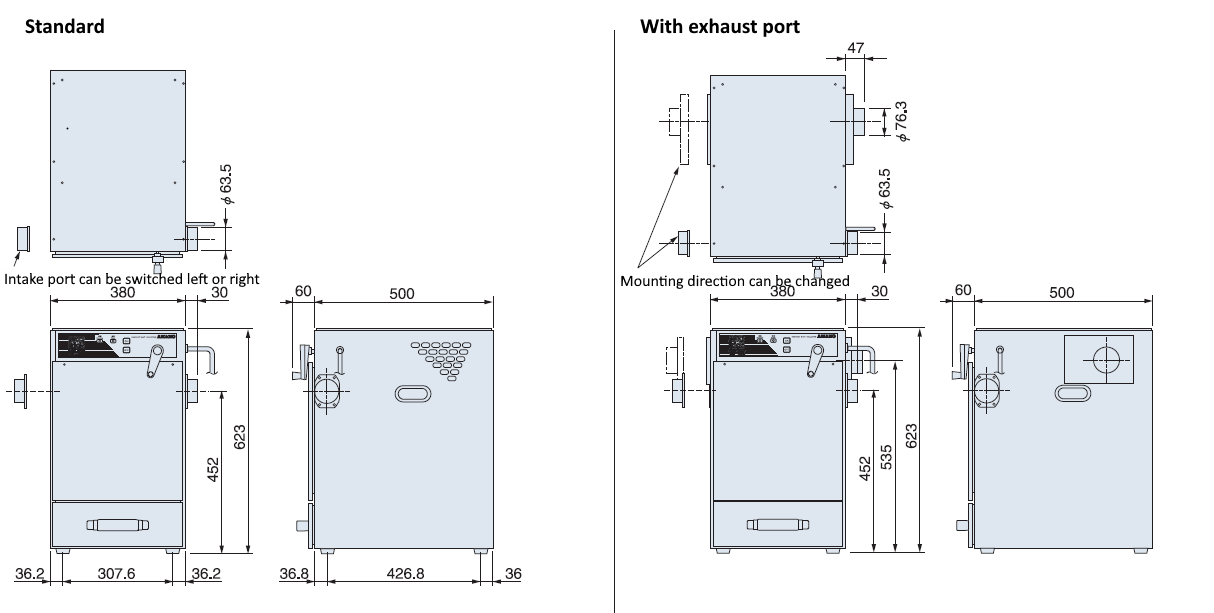

Dimension

Unit: mm

Application

VF-5N AP Cutting Work

VF-5N Grinding Work

VF-5N AP Machining Work



VF-5N AP Boring Work

Specifications

Particular Unit VF-5N VF-5NA
Power Supply Volt 220 220
Frequency Hz 60 60
Phase 1P/3P 1P/3P
Output kw/hp 0.4/0.5 0.4/0.5
Max Airflow m³/min 6 6
Max. Static Pressure kPa 1.76 1.76
Filter Area 1.6 1.6
Suction Port Ø mm 63.5 63.5
Dimension (W x D x H) mm 380 x 500 x 623 380 x 500 x 623
Weight kg 43 46
