VOLKMANN Compact package type Pneumatic Conveying System
- Compact
- Lightweight
- Easy to install and operate
- Quick and simple assembly/disassembly by hand without tools
- Safe and reliable
- Hygienic and easy to clean
- Direct suction
・Suction hopper
・Flexible container bag
・Silo
・Spray dryer, etc.
- Direct Discharge
・Mixing Tank
・Filling Machine
・Packaging Machine
- Simple, compact, and lightweight systems
・Suction hoppers
・Flexible container bags
・Silos
・Spray dryers, etc.
- Suction plug transport preserves granules and avoids classification.
By adjusting the feeding system, materials can be conveyed very gently. Segregation is avoided, static electricity is reduced, and brush discharges are eliminated. Achieving this transport condition requires a high vacuum, which is achieved by the multi-stage venturi system of the VOLKMANN Multi-Ejector.
- Modular design for easy cleaning
Compact and lightweight
Easy to install and operate
Quick and easy disassembly without tools
Easy and hygienic to clean

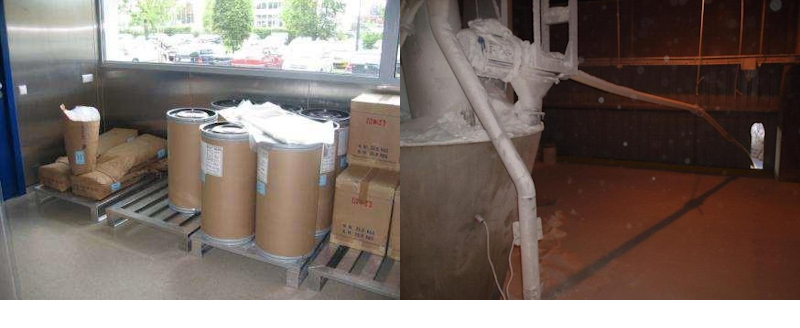

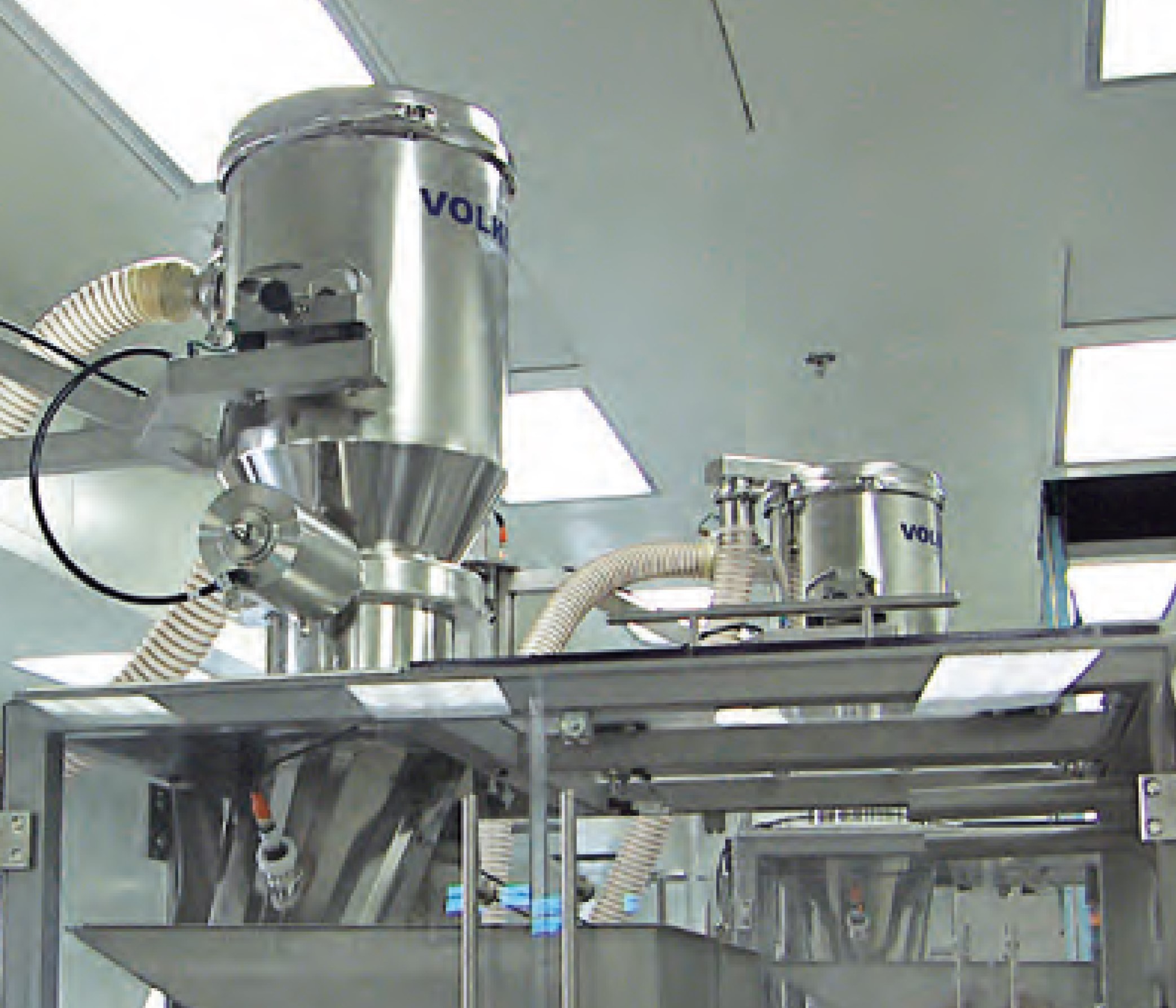

Sample Installation
From raw material container to process
Specification
| Particular | Unit | VS200 | VS250 | VS350 | VS450 |
|---|---|---|---|---|---|
| Body diameter | mm | 200 | 250 | 350 | 450 |
| Overall height | mm | 704 | 870 | 1016 | 1315 |
| 1 batch amoun | L | 2.5～3.0 | 5.5 | 12.9 | 26.0 |
| Conveying capacity | L/h | 100～500 | 500～1000 | 000～2000 | 2000～3000 |
| Number of filter | 1 | 2 | 4 | 7 | |
| Compressed air consumption at 0.55 MPa | NL/min | 344～516 | 344～1720 | 516～3440 | 860～4300 |
| Body material | SUS316L | SUS316L | SUS316L | SUS316L | |
| Weight | kg | 20 | 30 | 40 | 40 |
