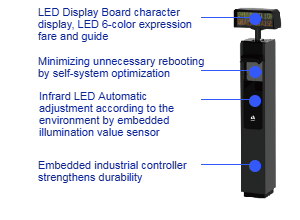

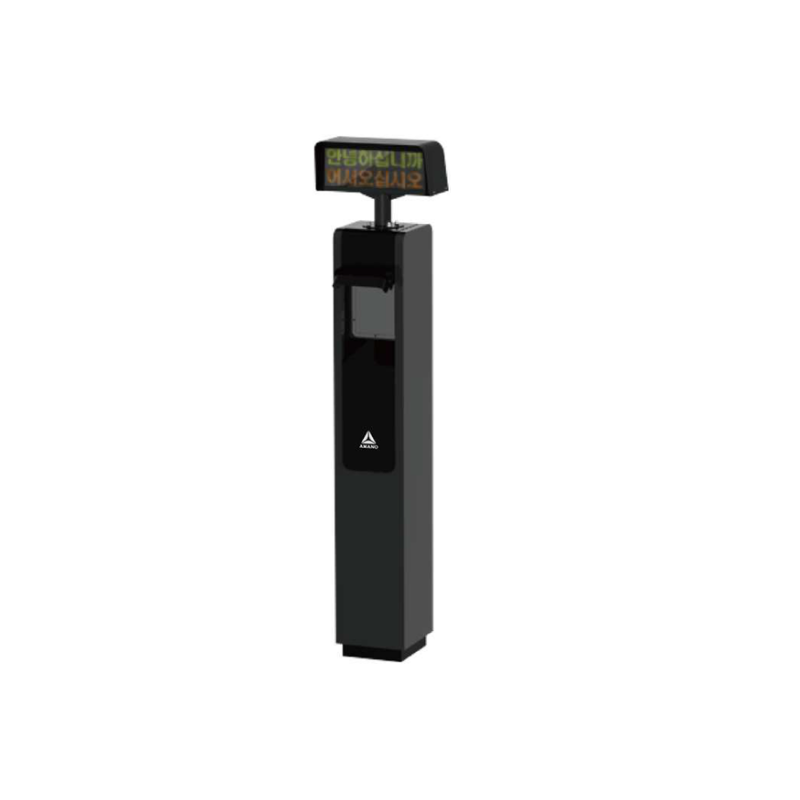

AK-3000 Series is an all-in-one License Plate Recognition Terminal is built with an LPR camera, an onboard license recognition processor, Stroble light, and LED display.
- License Plate recognition Recognize the vehicle number by analyzing theimages capture by camera.
- Car ID recognition process can be carried out without a separate computer.
- Receives a signal from a vehicle sensor and transmits a signal that can operate the strobe lighting device for a constant illumination.
- In case of changing the license plate in the future, it will be supported to maintain compatibility with the changed license plate during the defect period.
- Display the car number, information text, and parking charge on the electric signboard.
- The electric signboard is easy to identify outdoors even in daytime and climate change by using LED.

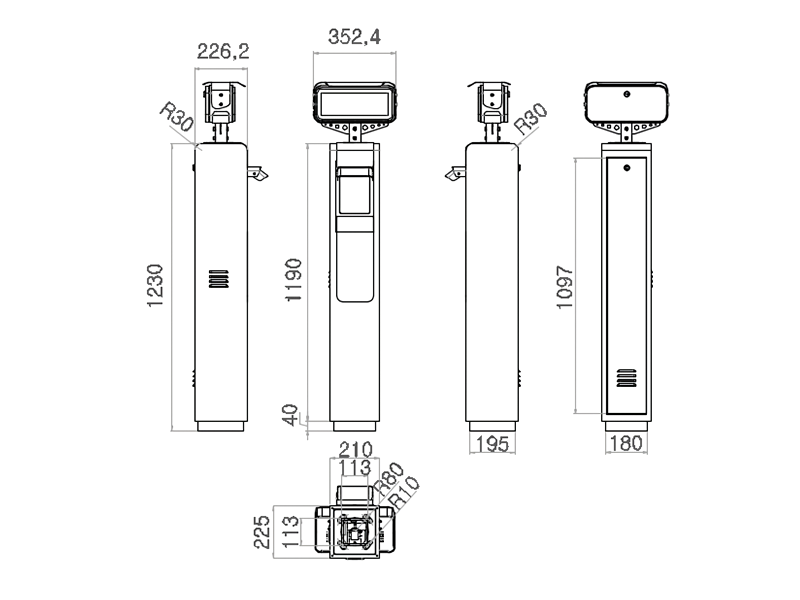

Dimension
Recognizer Specifications
| Particular | Description | |
|---|---|---|
| Recognition rate | 98% or more (except front and back bad plate special plate) | |
| Audience | Passenger cars and lorries | |
| License plate recognition speed | under 1 second | |
| Recording method | Trigger method | |
| Communication method | LAN (TCP / IP) |
Camera Specifications
| Particular | Description | |
|---|---|---|
| Shutter speed | 1/60 to 1 / 10000 | |
| Lighting device | IR LED lighting | |
| Lighting angle | 20˚ | |
| Resolution | 1440 pixels horizontally 1080 pixels vertically | |
| Image sensor | CMOS sensor | |
| Capable vehicle speed | under 30Km/h |
