VNA Series – The best of basics dust collector –

vna-302 210210

Bestseller Standard Dust Collector. The strength of the "basics" transcends time. This is a standard model that thoroughly pursues the basics. VNA Series standard models are based on Amano’s time-proven dust collecting technology.

Canvas filter

Manual Shaking

General dry dust

Max. airflow

Premium efficiency motor

Features:

  • Compact design
  • Catch micron-sized particles
  • Fig-efficient filter material
  • Manual shaking Filter cleaning
  • Lightweight plastic dust tray
  • Lengthy maintenance free operation
  • Easy operation
  • Noise-proofdesign for quiet operation
  • Collected dust prevented from being scattered

Canvas filter

Material: Cotton
Surface treatment: –
Corresponding models: VNA
Application: General dried particles (particle diameter about 10μm)

Features:

  • For dust having a particle diameter of about 10μm.
  • Collecting efficiency: Good, Particle diameter about 10μm
  • Heat resistant temperature (F) : normal temperature 40˚C (104˚)
  • Dust removal: Vibration

Easy filter replacement

VNA units employ plate filters, giving them a wide filter area, while enabling them to collect even micron-sized particles with remendous efficiency. Filters are one-piece units, allowing easy replacement.

Compact Design

The compact design of VNA Series Dust Collectors requires very little installation space. Inlet ports on either side of the units can be utilized.

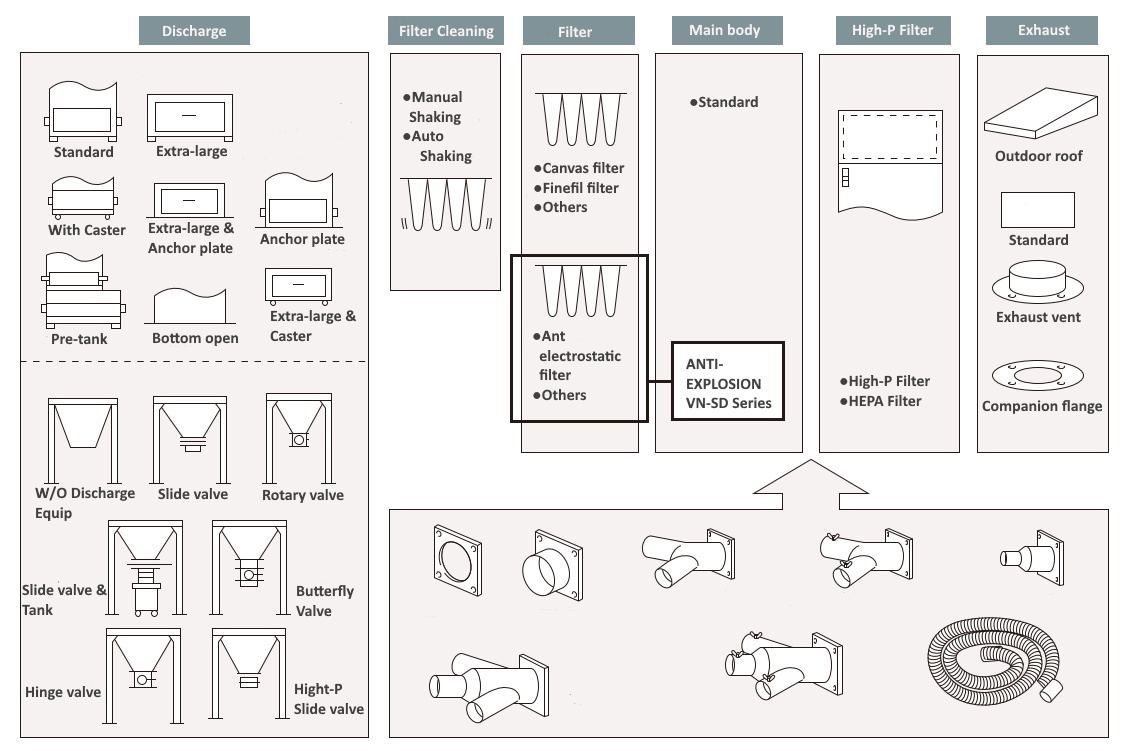

Various Combination

Various Options and Accessories

Internal Structure

VNA Inside

External View

VNA EXT ALL



APPLICATION

Powder Loading

Cutting Machine

Bagging operation

Cutting operation

Drilling Machine

Specification

Particular Unit VNA-15 VNA-30 VNA-45 VNA-60 VNA-120
Power Supply Volt 220 220 220 220 220
Frequency Hz 60 60 60 60 60
Phase 3P 3P 3P 3P 3P
Output kw/hp 0.75/1 1.5/2 2.2/3 3.7/5.0 7.5/10
Max Airflow m³/min 12 28 40 55 110
Max. Static Pressure kPa 2.45 2.55 2.55 2.90 3.20
Filter Area m² 4.5 9.0 13.5 18.0 36.0
Suction Port Ø mm 127 150 200 200 300
Dimensions (WxDxH) mm 650x400x1205 650x650x1492 850x650x142 1100x700x1652 1174x1464x1796
Weight kg 92 145 180 270 510
